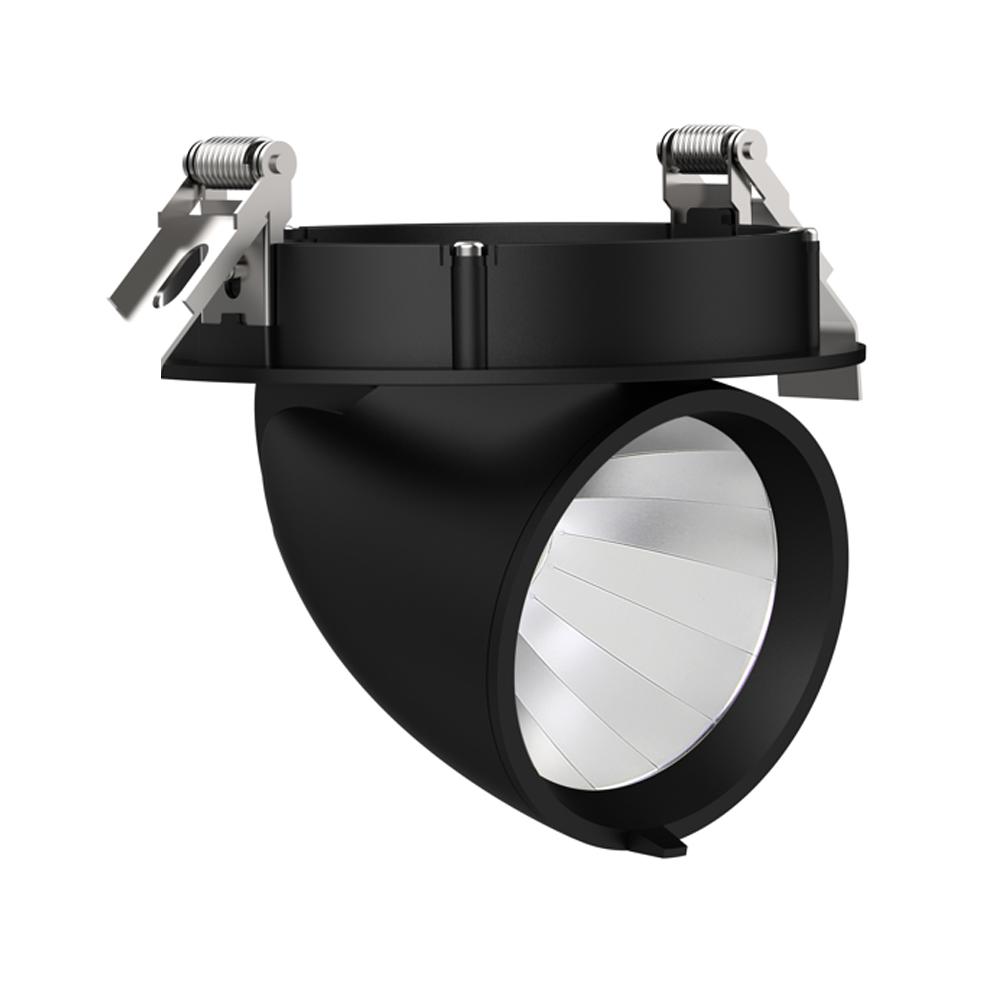

15W 20W Gimbal LED downlight

  • 15W 20W Gimbal LED downlight
  • 15W 20W Gimbal LED downlight
  • 15W 20W Gimbal LED downlight
  • 15W 20W Gimbal LED downlight
  • 15W 20W Gimbal LED downlight
  • 15W 20W Gimbal LED downlight
  • 15W 20W Gimbal LED downlight
Model No.︰LL-GDL140114
Brand Name︰LOWCLED
Country of Origin︰China
Unit Price︰US $ 18.49 / pc
Minimum Order︰5 pc
Share on:

 Total 31 Related Items
Prev12345Next

Product Description

Description:

1. The directional fashionable integrated Gimbal LED downlight is specifically designed to achieve a pleasant and highlight image in commercial lighting.

2.The Kit includes a flicker-free driver and a die-casting aluminum integrated cooling radiator and solid mounting clips. The housing is finished with an internal reflector and tempered glass that provides glare free and uniform light distribution.

3.The housing is IP44 and completely closed so that insects can not penetrate.

4. With a lifespan of up to 50,000 hours this lumminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications.

Features:

  • CRI: 80+ ,90+(3000K/4000K/5000K)
  • LED brand: Bridgelux, CREE, Luminus
  • Beam angle: 15° / 24° / 38° / 60° are available
  • Adjustable: Continuous 350° rotation and 90° pivot.
  • Die-casting aluminum housing
  • Good quality driver, flicker-free, PF>0.95
  • High luminous efficiency: 80-140lm/W @CRI80 (whole lamp)
  • Wattage: 15W, 10W, 20W, 25W, 30W, 35W, 40W and 45W
  • Warranty: 5 years.

Specification:

Model LL-GDL140114-15W LL-GDL140114-20W
Power(±10%) 15W 20W
Product Dimension D140*H114
Cut out D125mm
Input AC200-240V / AC90-130V
Dimmable DALI, TRIAC, O/1-10V, DMX, RF, ZigBee
Luminous Efficacy 80-140lm/W @CRI80 (whole lamp)
PF >0.9
LED Type Bridgelux
LED Q‘ty COB
CCT(K) 2700K/3000K/4000K/5000K/6000K
CIR(Ra) 80, 90, 97
Beam angle 15° / 24° / 38° / 60°
Working Temperature -20℃~45℃
Storage Temperature -20℃~45℃
Adjustable Adjustable
Housing color White / Black
IP Grade IP44
Body Materials Aluminum Alloy
Certificate CE, Rohs

Application:

Recessed lighting, shelf lighting, ceiling /wall coves, Cabinet and under counter lighting, office work station,Back lighting, step lighting light boxes, Merchandising, exhibition stands,and panels etc.

Payment Terms︰T/T,L/C at sight
