Features:

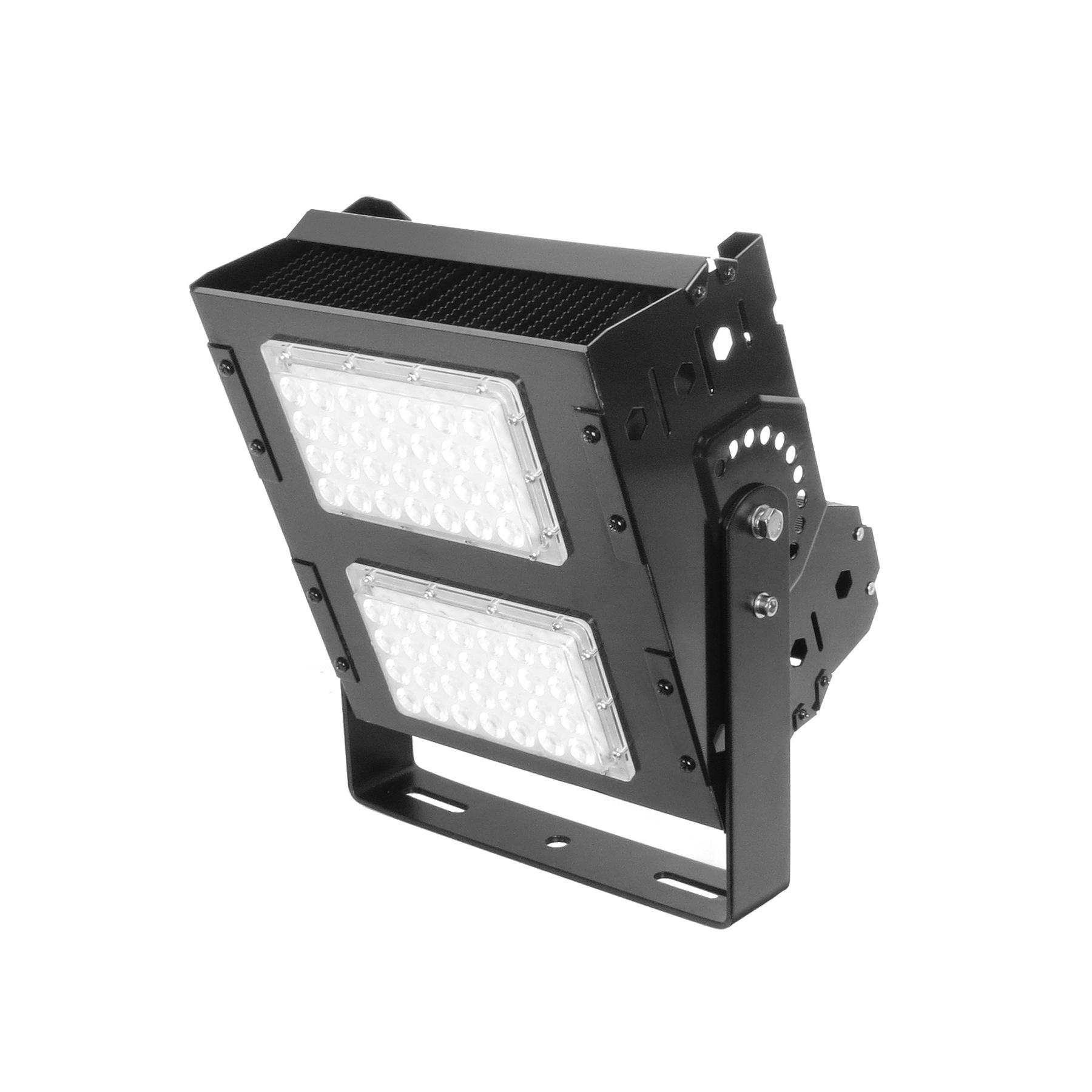

- Lowcled stadium light is perfect for all kind of sports stadiums. The superior light output, reduced energy usage and possibility the use the existing infrastructure make a perfect match with many sport club’s policies.
- High Protection Level up to IP67: Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan.
- High Impact Resistance: Meets IK08 mechanics impact protection code.
- Anti 17-level Wind Power: Fixture’s Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-wind.
- High Vibration Resistance: Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.
- Surge Suppression Protection: Optional 20KV SPD for adding an additional layer of protection for the light.
- 50,000 houe.rs lifetime
Specification:
Model |
LL-FLSP2-200W |
Power |
200W |
LED |
Philips |
Driver |
Meanwell |
Input Voltage |
100-240VAC |
Frequency |
50/60Hz |
Power Factor |
≥0.9 |
Total Harmonic Distortion |
<20% |
Color Temperature |
3000-6500K |
Luminous Flux |
24000lm |
Luminous Efficacy |
120 lm/w |
CRI |
>80 |
Beam Angle |
12° / 30° / 60°/ 90°/ 30°X70° |
Light Transmittance |
0.92 |
IP Level |
IP65 |
Operating Temperature |
-40~40℃ |
Preservation Temperature |
-40~90℃ |
Lifespan |
50,000h |
Warranty |
5 years |
Advantage:

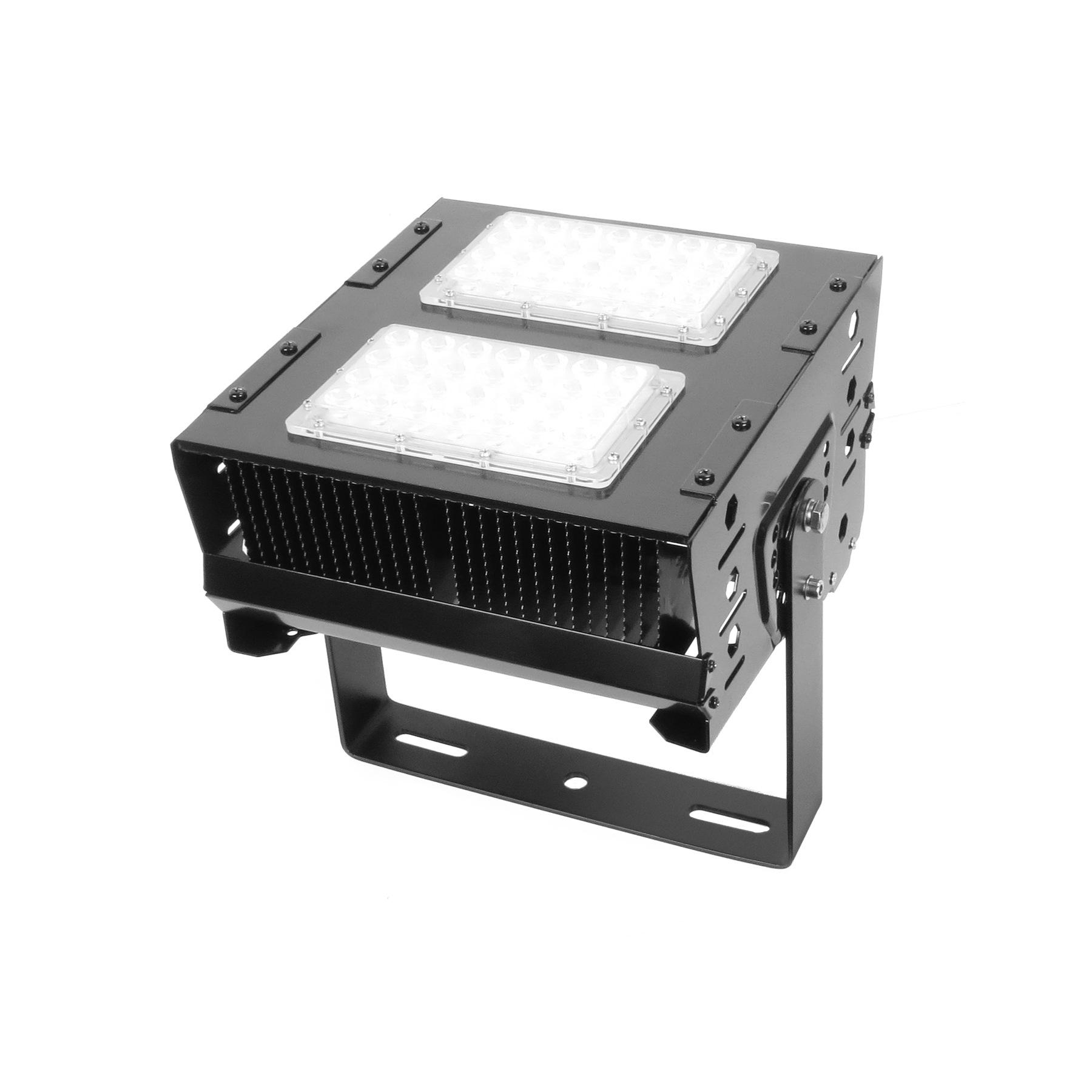

The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.
Advantage of our pin heatsink: Incoming air from any direction moves approximately straight forward through the pins, bringing away heat quickly. Comparing to other typical radiant-fin heatsink, incoming air is deflected and slowed down by the radiant fins, moving heat slowly.
Application:
Lowcled LED Stadium Flood Light is widely used at factory, tunnel, underground mine, school, hospital, parking lot, warehouse, square, supermarket, courtyard and so on.
Trade terms:
- Payment terms: T/T,L/C at sight
- Sample Delivery Term: Samples can be delivered within oneweek via DHL/Fedex/UPS/TNT/EMS
- Shipping port: Shenzhen, China
